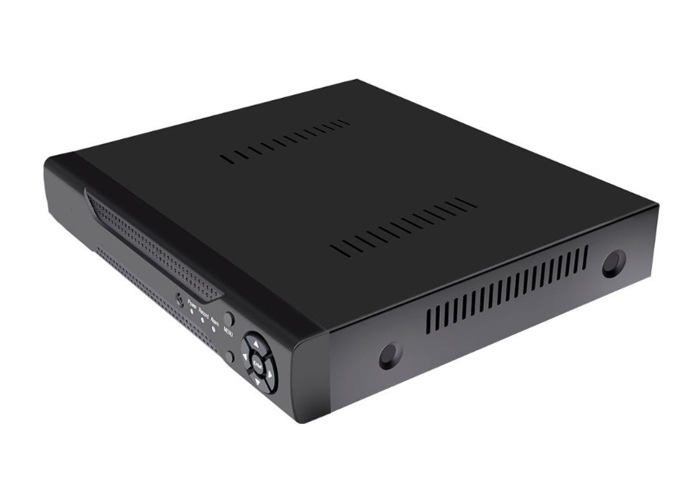

    1080N HDMI DVR Digital Video Recorder 16CH P2P Penetration XMeye Solution

    Ask Lasest Price
    Brand Name : WINBO
    Model Number : SAV-T1601-LM-XM
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram,Paypal
    Supply Ability : 10000PCS Per Month
    Delivery Time : 5-8 Working Days for Sample Order.
    • Product Details
    • Company Profile

    1080N HDMI DVR Digital Video Recorder 16CH P2P Penetration XMeye Solution

    P2P penetration XMeye Solution 16CH 1080N DVR Digital Video Recorder Support HDMI


    Features


    • H.264 compression technology
    • Dual-stream transmission for all channels
    • HDMI, VGA output simultaneously
    • P2P penetration, free Internet cloud access service
    • Support Windows, Mac OS, Android, iPhone devices
    • Support motion detection , privacy mask and channel patrol
    • Easy backup with USB Flash Disk, Movable hard drive,Network
    • Support FTP transmission

    Specification


    Model: SAV-T1601-LM-XM
    Videl FormatNTSC/PAL
    Video inputs16CH
    Video outputs1CH HDMI*1CH VGA*1CH CVBS
    Encode capabilityPAL:4*720P@25fps NTSC: 4*720P@30fps
    Decode capabilityPAL:4*720P@15fps Non-realtime
    NTSC:4*720P@15fps Non-realtime
    Display resolutionHDMI:1280*1024, 1280*720, 1280*768, 800*600
    Display split1/4/8/16
    Audio input4CH RCA
    Audio output1CH RCA
    compression formatVideo: H.264 Audio: G711A
    Recording modeManual/motion/schedule
    Space occupationVideo:720p 20G/day/CH, 960H 15G/day/CH
    Audio: 691.2M/day/CH
    Internal HDD1 SATA Port, UP to 6TB
    Trigger eventRecording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot,
    Buzzer&Screen Tips
    Alarm input4
    Alarm output1
    EthernetRJ45 Port(10/100m) Self-adaptive ethernet port
    Network protocolTCP/IP, DHCP, FTP, UDP, DDNS, PPPOE
    Max user access20 users
    Remote operationVia http using IE(active X) IOS, Andriod, PC Client
    USB interface2 port, 2 rear panel
    RS4851 port RS485 for PTZ control
    General
    PowerDC12V
    Power consumption≤6W(without HDD)
    Working environment-10℃~+55℃/10%-90%RH/86-106kpa
    Dimension(L*W*H)260*240*44(1U)
    Weight(without HDD)1.5KG
