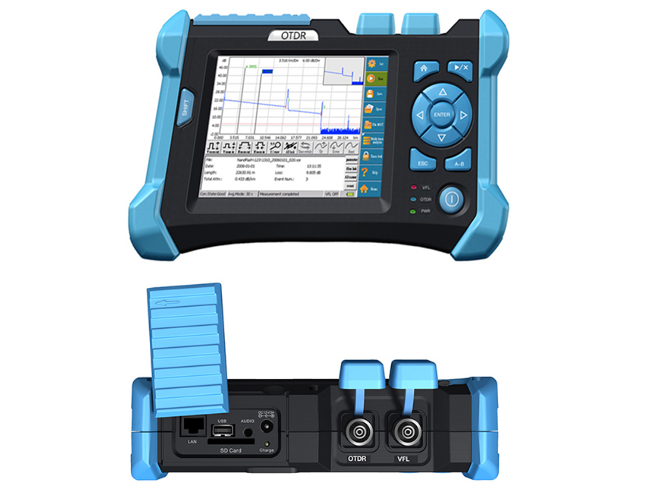

Multi - wavelength Measurement IP HD CCTV Tester Optical Time Domain Reflectometer

Multi-wavelength Measurement HD IP CCTV Tester Optical Time Domain Reflectometer

Features

● 38dB high dynamic range

● ≤ 2m extra- short event dead zone

● 0.05m high distance resolution,128k sampling points

● Fast auto measurement, one-button operating

● Test up to four wavelengths with a single unit

● Communication light check automatically

● Remote function via Ethernet

● USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync

● Supporting Bellcore GR196 file format in writing or reading

● Built-in lithium battery with high capacity for over 8 hours of operating life

● Integrated Visible fault locating (VFL)

Specification

Model

SAV-7300 Plus

Wavelength (nm)

850/1300

1310/1550

1310/1490/1550

1625

Dynamic range (dB)

23/21

32/30

34/32

36/34

38/36

34/32/32

38/36/36

304

325

344

365

Pulse width (ns)

5,20,40,80,160,320,640,1280

5,20,40,80,160,320,640,1280,2560,5120,10240,20480

Event dead zone (m)3

Attenuation dead zone (m)3

Linearity (dB/dB)

±0.05 dB/ dB

Loss threshold (dB)

0.05

Loss resolution ratio (dB)

0.01

Sampling resolution ratio (m)

0.125 to 8

Sampling point

32K

Distance uncertainty (m)

±(1 m + 5×10-5× distance + sampling interval)

Distance scope (km)

0.3 to180

Typical real-time refreshing duration (s)

0.2

Memory capacity of trace

SD Card (2G), > 10000 pieces

Duration of measurement

Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable

General specification

Interface category

Dimension (H×W×D)

150×235×66

Optical interface

FC/UPC (PC, and APC are selectable)

Weight

1.5kg

Data interface

USB interface, SD card interface

Temperature

Running temperature -10℃ to 50℃

Memory temperature -40℃ to 70℃

Relative humidity

0% to 95% (non condensation)

650nm

Power supply

Lithium battery; continuing working duration ≥ 8 hours

≥-3

Warranty period

12 months

3km

Remarks:
1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure. Without considering the uncertainty caused by optical fiber refractivity.
2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 180km/20480ns/3min.
3. Measuring conditions of blind zone: reflection event is within 4Km, reflection strength < -35dB. Measured by the minimum pulse width.
4. Dynamic range measured when there is filter.
5. Dynamic range measured when there is no filter.
