| LCD | Item series | X4 series |
| Display | New 4 inch IPS touch screen , 800*480 resolution |
| Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto
adapt) |
| Analog video level meter, peak video signal level, SYNC signal
level, Color bar chroma level measurement* |
| PTZ control,RS485 control, Baud 600-115200bps,compatible with more
than 30 protocols such as PELCO-D/P,Samsung, Panasonic etc |
| CVBS loop test | the tester send and receive color bar generator signal, check BNC
cable |
| IP camera test | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
| 4k/H.265/H.264 | Rapid Video | Auto view the video, create testing report |
| Hik test tool | pressing just one key to activate hikvision camera , Image test,
can modify the user name, password and IP parameters |
| Dahua test tool | Dahua camera test, modify the username, password and IP parameters |
| IP& CVBS test | IP& CVBS test at the same time ,converter test from analog to
digital with dual test window |

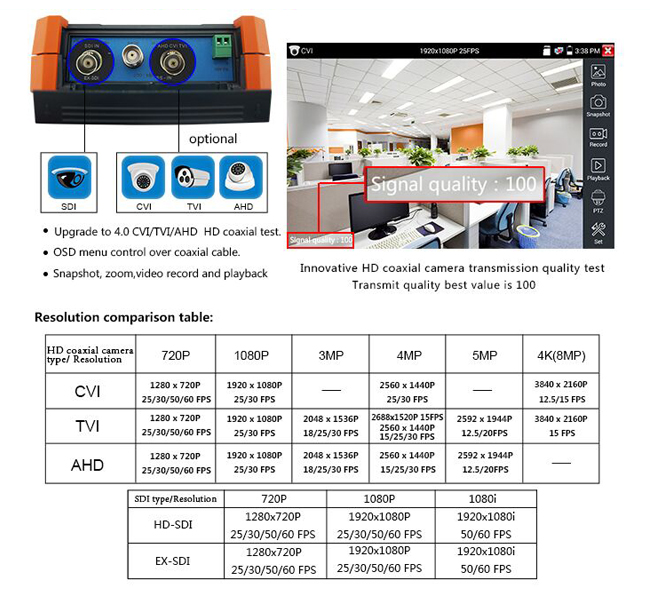

| Coaxial HD test * | 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu
* |
| 8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control/ call OSD
menu * |
| 5MP AHD test,2560x1944P 12.5F/20F, UTC control/ call OSD menu * |
| HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS * |
| HDMI input * | 1 channel HDMI input, support 1080P * |
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record, save ,view and
record and play back |
| Analog Video out | color bar generator | Output one channel PAL/NTSC color bar video signal for testing
monitor or video cable |
| 12V/2A power | Output DC12V/2A power out ,supply temporarily power for the camera |
| Power output | PoE power output | 48V PoE power output, max power 24W |
|
| Cable test | TDR cable test * | BNC cable, network cable, telephone cable, RVV cable and elevator
cable, cat 5/6 cable's length and short circuit. measurement range
1.2KM * |
| Cable tracer * | search BNC cable, network cable and telephone cable from the mess
cables * |
| UTP cable test | Test UTP cable connection status and display on the screen. Read
the number on the screen |
| RJ45 cable TDR test | Test cable pair status, length, attenuation, reflectivity,
impedance, skew etc. measurement range 180M. |
| TesterPlay | Screen projection:tester, mobile phone and PC display at the same
time (For android version mobile phone) |
| Network test | Trace route, Link monitor, DHCP server, port flashing , Ping test |
| Wi-Fi | Built in WIFI, speeds 150M,display wireless camera image |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel
audio signal, to connect headphone |
| Data monitor | Captures and analyzes the command data from controlling device,also
can send hexadecimal |
| PoE test | Measurement POE switch or PSE power supply voltage and cable
connection status |
| Drop-down menu | You can select PoE power switch ,IP setting,CVBS, LAN info, HDMI IN
functions etc in any interface |
| External power supply | DC 12V 2A |
| Battery | Built-in 7.4V Lithium polymer battery, 4000mAh |
| Rechargeable | After charging 3~4 hours, normal working time 9 hours |
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean,
Russian, Italian, French, Polish, Spanish, Japanese etc |
| Auto off | 1-30 (mins) |
| Working Temperature | -10℃---+50℃ |
| Working Humidity | 30%-90% |
| Dimension/Weight | 204mm x 123mm x 38mm / 0.6kg |
| Below are optional functions,Digital multimeter and cable tracer NO
MOQ , if need customize other below functions ,QTY MOQ is 50pcs (If
add any functions into tester, you need pay addition cost),if you
add one of “A/D/H/S,then cannot choose “T” |
| M | Digital Multimeter: DC and AC voltage measurement, Resistance
measurement, Continuity test, Diode measurements, Capacitance
measurement |
| O | Optical power meter:
Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement
range ,-70 ～ +10 dBm, for optical power testing and Fiber link loss
relative measurement |
| V | Visual fault locator: 10mW visual fault locator with 650nm
wavelength can emit red laser sources to test multi-mode and single
mode fiber's bending and breakage, test range 10KM |
| T | TDR cable test: BNC cable, network cable, telephone cable, RVV
cable and elevator cable, cat 5/6 cable's length and short circuit.
measurement range 1.2KM |
| A | 5MP AHD camera test: 2560x1944P 12.5F/20F, UTC control/ call OSD
menu |
| H | 8MP TVI camera test: 3840 x 2160P 15 FPS, UTC control/ call OSD
menu |
| D | 8MP CVI camera test : 3840 x 2160P 12.5/15 FPS,UTC control/ call
OSD menu |
| S | HD SDI/EX-SDI camera test: support 1080P 50/60 FPS |
| L | Video level meter: PEAK ,SYNC signal level, color burst chroma
level measurement |
| C | Cable tracer: search BNC cable, network cable and telephone cable
from the mess cable |
