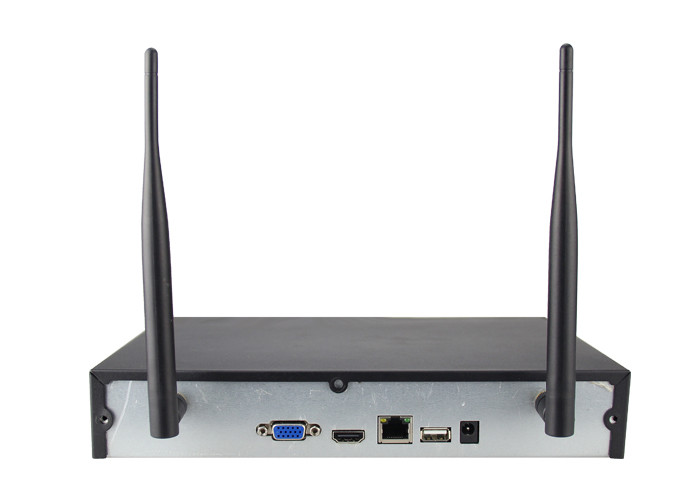

| Item | 9CH Smart NVR Recorder |
| Model | SAV-NVR3609PG |
| System |
| Main Processor | ARM Cortex A7 Processor(Hi3798) |
| Operating System | Embedded Linux |
| Video | |
| Input | 4xWIFI IP Camera + ONVIF Wired IP Camera (Max. 9CH IP Input) |
| Output | 1 VGA, 1 HDMI |
| Audio |
| Input | 1CH RCA Input |
| Output | 1CH RCA Output |
| Audio Bit Rate | 64kbps |
| Audio Compression standard | G.711 |
| Alarm |
| Sensor Input | NO |
| Output | NO |
| Email Alarm | Support |
| Display |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz |
| HDMI | Resolution: (3840×2160)/ 1920×1080/1280×1024/1280×720 |
| Display Split | 9CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k |
| Digital Zoom | yes |
| OSD | Camera Title, Time, Video Loss, Recording, Motion Detection |
| Recording |
| Video Compression | H.265/H.264 |
| Resolution | 2560x1440 |
| Record Rate | PAL:5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp,
960P@9×25fp,720P@9×25fp, D1@9×25fp |
| NTSC:5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp,
720P@9×30fp, D1@9×30fp |
| Record Mode | ManualTimerMotion Detection |
| Playback & Backup |
| Local Sync Playback | 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 1CH 1080P@30fps, 1CH
960P@30fps, 1CH 720P@30fps |
| Decode Capacity | 1CH 5MP@30fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom |
| Alarm Input | USB Device/Network |
| Backup Mode | 4ch |
| Remote View | Support by Smart Phone |
| Network |
| Interface | 1xWAN + 3xLAN (10/100Mbps Self-adaptive) |
| Network Functions | HTTP, IPv4, TCP/IP, DNS, DHCP, NTP, DDNS |
| Onvif Version | Support Onvif 2.4 |
| Web Browser | IE6-11, Firefox, Chrome (Under Windows System) |
| CMS Software | Support Windows XP / Windows Vista / Windows 7/ Windows 8 |
| Cloud Support(P2P) | yes |
| Incoming Bandwidth | 60MB |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| POE | / |
| Wifi | YES |
| Wifi Range | No Obstacles 300m Max. |
| Hard Disk Driver |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 6TB capacity |
| General |
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic,
Bulgarian, Farisa,German, French, Portuguese, Turkic, Spanish,
Italian, Hungarian, Romanian |
| USB Interface | 2 USB 2.0 Interfaces |
| Power Supply | DC12V |
| Working Environment | -10~55℃/10~90% |
| Dimension(W×D×H) | 260*215*43(mm) |
| Weight | 2.0KG (without HDD) |
