1080P NVR Poe Surveillance Camera System Without Power Plug 35M IR distance

Product Categories

Shenzhen Winbo Digital Co., Ltd.

Contact Now

1080P NVR Poe Surveillance Camera System Without Power Plug 35M IR distance

Ask Lasest Price
Brand Name :	WINBO
Model Number :	SAV-PN1254K
Certification :	CE,ROHS
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

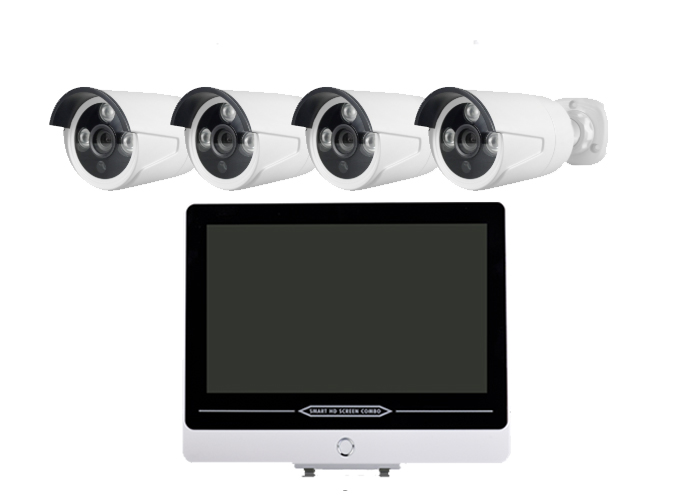

1080P NVR Poe Surveillance Camera System Without Power Plug 35M IR distance

Without Power Plug 1080P PoE IP Camera Kit Built in 1.5nch LCD Screen PoE NVR

Features

No need to configure IPC, plug and play
Full HD Video: 4*1080P/3M/4M/5M/8M
Online upgrade function, NVR can also upgrade IPC
P2P Service
Online upgrade function, NVR can also upgrade IPC
Dual stream,IPC screen preview without add IPC
Strong compatible ability ,key to add IPC in onvif
A-POE feature: Power and Video via One Cable
Support multi language switch
Mobile viewing, iphone&android app
Free DDNS :www.e-seenet.com,no need DDNS setting

Application

It can be used in various kinds of surveillance scenes, such as home, office, supermarket, garden, etc.

Speciation

Model		SAV-PN1504K
Video input	Video input	4CH x 1080P/3M/4M/5M/8M,RJ45connector
	Switch	Build-in switch
	HDMI output	1 HDMI connector, resolution: 1920x1080P/60Hz; 4K/30Hz
	VGA output	1 VGA connector, resolution: 1920x1080P/60Hz
Video coding	Video Compression	H.265/H.264
specification	Record&playback	4CH 8MP Record,1CH 8MP Playback
		4CH 1080P record, 2CH 1080P playback
		4CH 960P record, 4CH 960P playback
		4CH 720P record, 4CH 720P playback
	Video coding resolution	1080P/3M/4M/5M/8M Record
	Frame Rate (FPS)	PAL: 25 FPS;NTSC :30 FPS
	Variable bitrate	256 Kbps -- 8.0 Mbps, image quality optional
	Stream type	AV stream / video stream, support VBR/CBR
	Dual stream	support
	Audio Compression	G.711A
Hard Disk	Interface Type	1 SATA Interface
Driver	Capacity	Up to 4TB capacity for each disk
	Backup	USB backup and internet backup
External	Network Interface	RJ45 10M / 100M adaptive Ethernet interfaces
Interface	USB Interface	2 USB 2.0 interfaces(support upgrade, backup, mouse)
	Serial Interface	1RS-485 interface
General	Working Temperature	-10°C ~ +55°C (14 °F ~ 131 °F)
	Operating System	Embedded Linux
	Software turn off	not support
	Operate device	IR remote and mouse
	Power input	DC 48V/1.5A&；provide 48V power to IPC
IP Camera Specification
Model Number	1MP	1.3MP	2MP
Dual-stream	Main stream:720P 25fps	Main stream:960P 25fps	Main stream:1080P 25fps
	Sub stream:640*360 25fps	Sub stream:640*360 25fps	Sub stream:640*360 25fps
Video Compression	H.265/H.264
Lens	3.6mm or 6mm
Image resolution	1280×720, 640×360	1280×960, 640×360	1920×1080, 640×360
IR distance	35M
Day/Night	35 meters IR Nightvision
Free DDNS	www.e-seenet.com
Waterproof	IP66
Video bite rate	64Kbps-4096Kbps continuously-adjustable
Protocol/Network function	RTSP, UPnP, PPPOE, DDNS
Web Browser	IE,Chrome, Safari, firefox
Mobile surveillance	Support Iphone, Andriod
Network	RJ45 10M/100M adaptive Ethernet interface
Operating Environment	-10℃- +55℃/10%-90%
Power Supply	POE power
