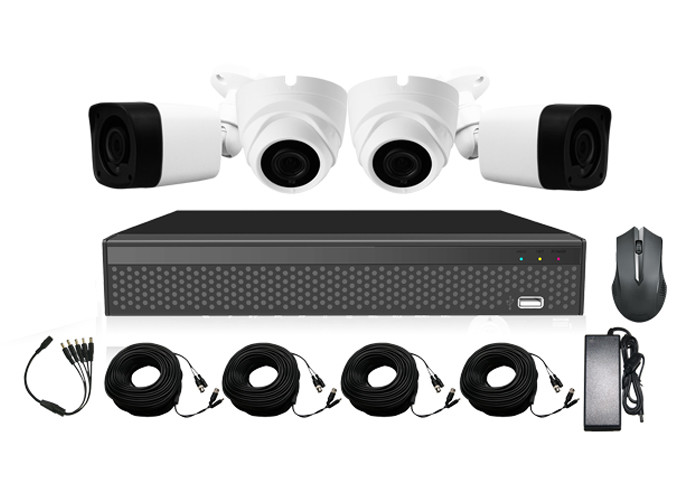

| NVR | 1x SAV-XVRA2004D |
| Camera | DIY 1: 2 x LBM24AD200F, 2 x LIRDLAD200F DIY 2:4 x LBM24AD200F DIY
3: 4 x LIRDLAD200F |
| Cable | 4x 18m BNC+DC Cable, 1x (1 to 5CH power cable splitter) |
| Mouse | 1xUSB 2.0 Mouse |
| Adaptor | 1xDC12V/4A |
| Weight | 7.9kg/SET |
| Camera Model | SAV- LBM24AD200F | SAV- LIRDLAD200F |
| Image Sensor | F23 |
| DSP | FH8536H |
| Image Resolution | 1080P / 960H |
| Effective Pixels | 1920*1080 |
| TV System | PAL/NTSC |
| Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s |
| S/N Ratio | ≥50dB |
| Scanning System | Progressive Scan |
| Lens |
| Focus Length | 3.6mm/F2.0 |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 5M Pixels |
| Auto Iris Support | NO |
| Night Vision |
| Infrared LED | 14µ x 18PCS |
| Infrared Distance | 20M |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Camera Features |
| Day/Night | YES |
| OSD Menu Language | YES |
| White Balance | AUTO / MANUAL |
| Gain Control | AUTO |
| Noise Reduction | 3DNR |
| Picture Adjustment | YES |
| WDR | YES |
| OSD Support | YES |
| UTC | YES |
| General |
| Housing | Plastic |
| Bracket | NO |
| Dual Voltage | NO |
| IR Cut Filter | YES |
| Heater | NO |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 500mA |
| Dimension | 160.8(W) x 62(H) x 62(D)mm | 90.5(W) x 80(H) x 80(D)mm |
| Weight | 380g | 300g |
| Model | XVRA2004D |
| System |
| Main Processor | HI3520DV200 |
| Operating System | Embedded LINUX |
| Video |
| Input | Analog: 4*1080N |
| Analog+Network: 2*Analog(1080N)+4*network |
| Network: 9*1080P/960P/720P(Total incoming bandwidth ≤46M) |
| Input | 4CH BNC |
| Signal Type | Analog/AHD/CVI/TVI 2.0/Network |
| Output | 1HD,1 VGA |
| Audio |
| Input | 4 Channel, RCA |
| Two-way Audio | NO |
| Output | 1 Channel, RCA |
| Alarm |
| Sensor Input | NO |
| Output | NO |
| Motion Detection | 4 Channel(max 9 Channel in pure network mode) |
| Trigger Events | Recording, Email, Screen tips, Buzzer |
| Email Alarm | Send Image to The Designated E-mail |
| PTZ |
| Interface | RS485 |
| Protocol | Pelco-D, Pelco-P |
| Baud Rate | 110~921600 |
| Address | 0~255 |
| Display |
| VGA | Resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720
/60Hz,1024 × 768 /60Hz |
| HD Output | Resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720
/60Hz,1024 × 768 /60Hz |
| Display Split | 9 Channel/4 Channel / 1Channel |
| Privacy Masking | 1 Rectangular Zones (Each camera) |
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording |
| Recording |
| Video Compression | H.264 |
| Audio Compression | G.711u |
| Resolution | Half 1080P(960×1080);720P(1280×720);960H(P:960×576/N:960×480) |
| Video Quality | worst/worse/ordinary/well/best |
| Record Rate | Analog: Half 1080P(960x1080 4*25fps),720P(1280×720 4*25fps),
960H(P:960×576 4*25fps/N:960×480 4*30fps) |
| Pure IP: PAL :1080P@9x25fps, 960P@9x25fps, 720P@9x25fps, D1@9x25fps |
| NTSC:1080P@9x30fps, 960P@9x30fps, 720P@9x30fps, D1@9x30fps |
| Record Mode | ManualTimerMotion Detection |
| Playback & Backup |
| Decode Capability | 2CH 1080P@30fps |
| Sync Playback | Pure Analog: 4CH 1080N@25fps |
| Mixture mode: 1CH 1080P@30fps+1CH 1080N@25fps |
| Pure Network: 2CH 1080P@30fps, 3CH 960P@30fps, 4CH 720P@30fps |
| Remote Playback | 1Channel |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Fast play, Rewind |
| Smart Phone Playback | 4 Channel |
| Backup Mode | USB Device/Network |
| Network |
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface |
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP,
RTSP, RTCP |
| DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES |
| Web Browser | IE8-11, Google Chrome (IE Tab), Firefox (IE Tab) |
| CMS Software | Support Windows 7/Windows 8/Windows 10 |
| Extra Stream | D1/CIF/(1~25fps) |
| Smart Phone | iPhone, ipad, Android ,Android pad |
| Hard Disk Driver |
| Interface Type | 1 SATA Interface |
| Capacity | 2.5"/3.5" SATA, Up to 6TB |
| General |
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic,
Bulgarian, Farisa |
| German, French, Portuguese, Turkic, Spanish, Italian, Hungarian,
Romanian, korean, Dutch, Greek |
| UTC Control | YES |
| USB Interface | 2 USB 2.0 Interfaces |
| Power consumption | DC 12V ≤6W (Without Hard Disk) |
| Working Environment | -10~55℃/10~90% |
| Dimension (W×D×H) | 260*215*43(mm) |
| Weight | 2kg (Without HDD) |
