    Solid CCTV Camera Accessories RG59 Siamese Coaxial Cable Secur Link Pure Copper Conductor

    Ask Lasest Price
    Brand Name : Securlink
    Model Number : SEC-RG59-D500B
    Certification : UL,ROHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Solid CCTV Camera Accessories RG59 Siamese Coaxial Cable Secur Link Pure Copper Conductor

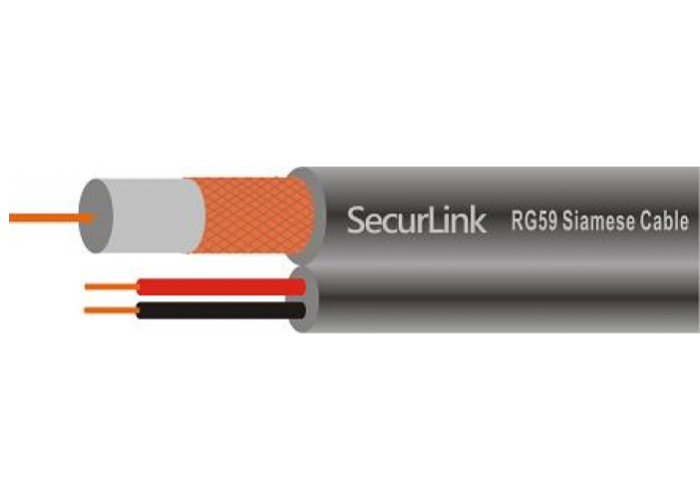

    SecurLink Pure Copper Conductor RG59 Siamese Coaxial Cable With Oil


    Description


    RG59 Siamese 20AWG Bare copper With Oil

    Solid With Power 305M Wooden Spool


    Features


    -. RG59/U 20AWG Pure Copper Conductor

    -. Oil Gel Filled
    -. 18AWG Stranded Power Cables

    -. 20AWG Solid Bare Copper Conductor For
    Optimal Signal Transmission

    -. 305M Wooden Spool


    Application


    CCTV Camera, TV, Cable Box,Satellite Receivers etc.


    Model


    NoLengthColor
    130201100mBlack
    130202100mWhite
    130203300mBlack
    130204300mWhite
    110205305mBlack
    110206305mWhite

    Specification


    Technical Data
    Rated Temperature-20 - 75 ºC
    Rated Voltage30V
    Refrence StandardANSI/SCTE 74 2011 & IEC
    ConductorBC 100% Conductivity
    MaterialCopper
    AWG20AWG
    0.81mm
    InsulationFoam PE
    FPE Dielectric Diameter3.1mm± 0.01 mm
    Maximum Eccentricity≤ 10%
    Minimum Resistance10000 MΩ× km
    1'st ShieldAluminum Tape Bonded
    2'st ShieldAluminum Wire (34 AWG)
    Braid Coverage≥ 40% (16x4x0.16mm)
    JacketPVC
    Jacket Diameter6.22 ± 0.2 mm
    Black Carbon Content≥ 2%
    18-2 Power Wire
    2×18AWG/7*0.38mm CCA Power Cores
    MarkingAvailiable
    The cable marking can according to customer's requirements

    Packing


    Inner Reel : Plastic Reel
    Outer Box : Brown Carton


    Performance


    Mechanical Properties
    Temperature rangeduring operation : -20°C ~ +75°
    Jacket Ovality (maximum)7%
    Dielectric ovality(maximum)7%
    Maximum Dielectric≤10%
    Maximum Jacket Eccentricity≤10%
    Bending Ability‘S’ and ‘U’ blending
    Bending Radius Min.≤ 1.5 cm
    Cold Bend Test @ -20°CNo visible damage to the jacket
    Impact test @ -10°CNo visible damage to the jacket
    Cond. Bond≥ 2.3 kg
    Electrical Properties
    Nominal Capacitance53 ± 0.1 nf/km
    Impedance75.0± 3.0 Ohms
    Impedance Homogeneous≥ 40 dB or ≤ 1%
    DCR Coax10.5ohms/1000ft
    34.4ohm/km(nom)
    18-2 Power Wire6.6ohms/1000 FT.
    21.7ohms/Km (Nom)18 AWG
    Nominal DC resistance8 (+/- 0.5) Ω/km
    Loop @ 20°C :18 (+/- 0.5) Ω/km
    Minimum Structural R L-20 dB
    Cond. Bond Dielectric(min)≥ 2.3 kg
    Min Velocity of Propagation≥ 82%
    Cable attenuation should comply table below
