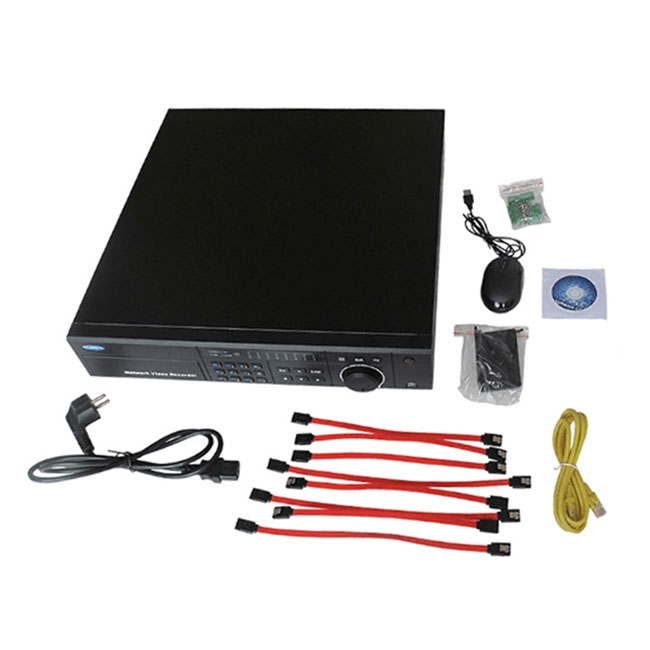

| Item | 16CH Smart NVR |
| Model | SAV-816E-BU |
| P2P Function | Using Device ID and password to login www.vssweb.net |
| Cloud storage | Realize remote monitoring, playback and control like IE Web login. |
| LCD screen on Front panel | No need any network, IP setting, easy for end user to use network
function. |
| Operation system | Embedded LINUX |
| Pentaplex function | Live monitoring, recording, playback, backup & remote access |
| Control Mode | Front panel, USB mouse, IR remote control, Network |
| IP Camera Input | 16ch |
| Decoding Capability | 13CH 720P@30FPS or 6CH 1080P@30FPS |
| Support Protocol | ONVIF,Videopark |
| Standard | PAL (625line, 50f/s) NTSC (525line, 60f/s) |
| Output | 1 CVBS, BNC (1.0Vp-p,75 ohms) |
| 1 HDMI, 1.3a,support 1920u00d71080 Resolution |
| 1VGA,1920u00d71080,1440u00d7900,1280u00d71024,1024u00d7768,800u00d7600
Resolution |
| Output | 1CH,BNC(Line in,2Vpp,1Kohms) |
| Two-way Talk | 1ch. Standalone |
| IP Resolution | Main stream:Up to 2560x1920 Auxiliary stream:D1 |
| Resolution | 6MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Frame | 1~30fps |
| Tour Display | Support |
| Working Status Display | LCD,blue backlight(working temperature,recording status,error code
etc.) |
| Privacy Masking | Four zones for privacy masking for each channel |
| Video Compression | MPEG-4/H.264(High Profile @ Level4.2uff09 |
| Audio Compression | G.711A |
| Image Encoding | Adjustable encoding quality, variable code stream/fixed code stream |
| Dual Stream | Support |
| Recording Mode | Manual, auto, motion detection, stop |
| Time Bar | Support |
| Trigger Events | Recording, PTZ, Tour,Email |
| Motion Detection | 396 (22u00d718) detection zone, variable sensitivity levels |
| Capture | JPEG capture |
| Alarm Input | 16ch. |
| Alarm Output | 3ch.NO,NC |
| Max Playback | 16CH |
| Backup Mode | USB,HDD,Network Backup |
| Ethernet | 2 RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Network Protocol | TCP/IP, UDP, HTTP, RTP/RTSP |
| Network Functions | DHCP, PPPOE, DDNS,SMTP,SNTP,FTP,UPnP,P2P,3G |
| Remote Operation | Monitoring,PTZ control,playback,system setting,file download,log
information |
| Smart Phone | iPhone,iPad,Android,Blackberry,Windows Mobile |
| Hard Disk | 1 eSATA Interface,each SATA supports 8*8TB |
| HDD Management | Hard disk hibernation technology, HDD faulty alarm&raid |
| USB Interface | 2 USB 2.0 ports |
| RS485 | Standard 485, half duplex,PTZ control |
| Power Supply | DC12V/3.3A |
| Power Consumption | 20W (without HDD&POE) |
| Working Environment | 1-10u2103~uff0b55u2103 / 10%uff0d90%RH |
| Dimension | 2U,441*448*88mm |
| Weight | 7Kg (without HDD) |
| Installation | Desk type |
