| LCD | Item series | SAV - IPC4300 Plus series |
| Display | New 4.3 inch IPS touch screen , 960*540 resolution |
| Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL
(Autoadapt) |
| Analog video level meter, peak video signal level, SYNC signal
level, Color bar chroma level measurement* |
| PTZ control,RS485 control, Baud 600-115200bps,compatible with more
than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
| CVBS loop test | the tester send and receive color bar generator signal , check BNC
cable |
| IP camera test | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
| 4k/H.265/H.264 | Rapid Video | Auto view the video, create testing report |
| Hik test tool | activate hikvision camera , modify the user name, password and IP
parameters |
| Dahua test tool | Dahua camera test, modify the user name, password and IP parameters |

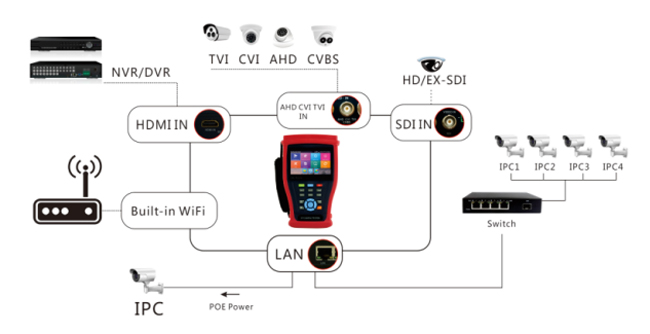

| IP& CVBS test | IP& CVBS test at the same time ,converter test from analog to
digital with dual test window |

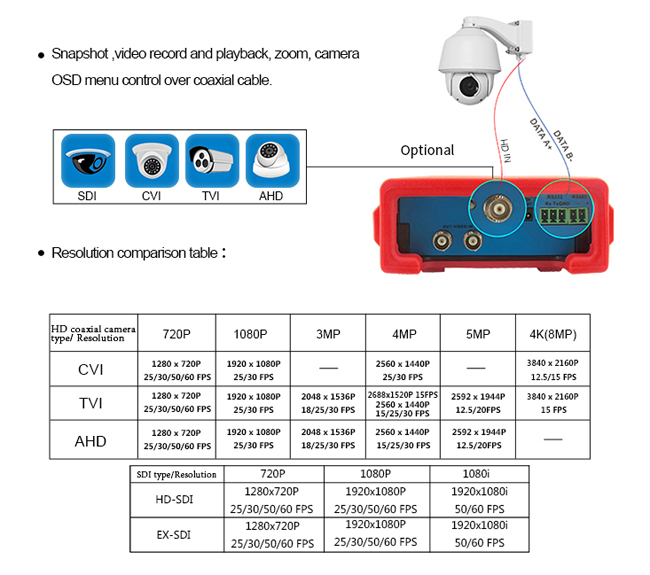

| Coaxial HD test * | 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu
* |
| 8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control d call OSD
menu * |
| 5MP AHD test,2560x1944P 12.5F/20F, UTC control d call OSD menu * |
| HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS * |
| HDMI input * | 1 channel HDMI input, support 1080P * |
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and
record and play back |
| Analog Video out | Color bar generator | Output one channel PAL/NTSC color bar video signal for testing
monitor or video cable |
| PoE power output | 48V PoE power output, max power 24W |
| Power output | DC12V power | DC12V /2A power output |
| Cable test | TDR cable test * | BNC cable, network cable, telephone cable, RVV cable and elevator
cable, cat 5/6 cable’s length and short circuit. measurement range
1.2KM * |
| Cable tracer * | search BNC cable, network cable and telephone cable from the mess
cables * |
| UTP cable test | Test UTP cable connection status and display on the screen. Read
the number on the screen |
| RJ45 cable TDR test | Test cable pair status, length, attenuation, reflectivity,
impedance, skew etc.measurement range 180M. |
| TesterPlay | screen projection:tester, mobile phone and PC display at the same
time (For android version mobile phone) |
| Network test | Trace route, Link monitor , DHCP server, port flashing , Ping test |
| Wi-Fi | Built in WIFI,speeds150M,display wireless camera image |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel
audio signal, to connect headphone |
| Data monitor | Captures and analyzes the command data from controlling device,also
can send hexadecimal |
| PoE test | Measurement POE switch or PSE power supply voltage and cable
connection status |
| Drop-down menu | You can select PoE power switch ,IP setting,CVBS, LAN info , HDMI
IN functions etc in any interface |
| External power supply | DC 12V 2A |
| Battery | Built-in 7.4V Lithium polymer battery ,5000mAh |
| Rechargeable | After charging 5~6 hours, normal working time 10 hours |
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean,
Russian, Italian, French, Polish, Spanish, Japanese etc |
| Auto off | 1-30 (mins) |
| Working Temperature | -10℃ --- +50℃ |
| Working Humidity | 30%-90% |
| Dimension/Weight | 215mm x 127mm x 53mm / 0.82kg |
| Below are customizable functions, , if add Digital multimeter and
cable tracer function into tester NO MOQ .If add other below
functions ,QTY MOQ is 50pcs (If add any functions into tester, you
need pay addition cost),if you add one of “A/D/H/S” ,then cannot
choose “T” |
| M | Digital Multimeter :DC and AC voltage measurement, Resistance
measurement, Continuity test, Diode measurements, Capacitance
measurement |
| O | Optical power meter,
Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement
range ,-70 ～ +10 dBm, for optical power testing and Fiber link loss
relative measurement |
| V | Visual fault locator :10mW visual fault locator with 650nm
wavelength can emit red laser sources to test multi-mode and single
mode fiber’s bending and breakage, test range 10KM |
| T | TDR cable test: BNC cable, network cable, telephone cable, RVV
cable and elevator cable, cat 5/6 cable’s length and short circuit.
measurement range 1.2KM |
| A | AHD camera test, 5MP AHD test,2560x1944P 12.5F/20F, UTC control/
call OSD menu |
| H | TVI camera test: 8MP TVI camera test,3840 x 2160P 15 FPS, UTC
control/ call OSD menu |
| D | CVI camera test : 8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC
control d call OSD menu |
| S | HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS |
| L | Video level meter :PEAK ,SYNC signal level, color burst chroma
level measurement |
| C | Cable tracer :search BNC cable, network cable and telephone cable
from the mess cable |
