Fast Unmanaged Network Poe Switch 5 Port Gigabit Automatic Recognition

Ask Lasest Price
Brand Name :	WINBO
Model Number :	SAV-PS104
Certification :	CE,ROHS
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000PCS Per Month

Add to Cart

Product Details
Company Profile

Fast Unmanaged Network Poe Switch 5 Port Gigabit Automatic Recognition

High Quality Automatic Detection and Recognition 4+1 Gigabit Unmanaged PoE Switch

Product Description

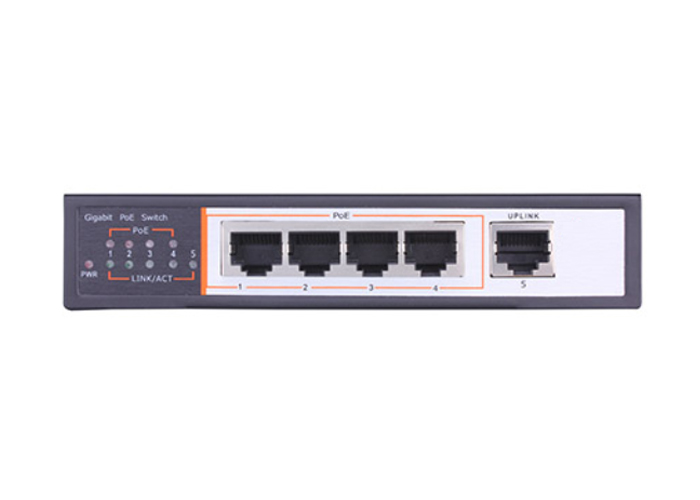

SAV-PS104G is 5 ports with Gigabit PoE switch,with automatic detection and recognition in line with IEEE 802.3 af / at standard PD device and supply power to function, and therefore do not need to worry about loss Bad proprietary standard PoE or non-PoE equipment.

SAV-PS104G is economical to use PoE to deploy wireless access points (AP) and the IP-based.
Ideal for network surveillance cameras for small business networks.
PS104G PoE switch can solve complicated maintenance, wireless coverage,
Terminal equipment to take power, security monitoring project, engineering problem a long time, the maximum
Limit saves engineering costs.

Specifictions

Interface	4 PoE 10/100/1000Mbps RJ45 ports(1～4)
Interface	1 10/100/1000Mbps RJ45 port(5th)
Standards	IEEE802.3i,IEEE802.3u,IEEE802.3x,IEEE802.3af,IEEE802.3at
Bandwidth	10Gbps(Non-blocking
MAC	2K
Forwarding Rate	7.44Mpps
LED	PWR,PoE,Link/ ACT
Power	Input 60W, 48V DC / 1.25A
	Each port up to 30W
	100~240V AC/ 50-60Hz
Dimensions	140L x 91W x 28H
Weight	0.5kg
Environment	Work within 0°~40°C, Storage within -40℃~70℃
Environment	Work within 10%~90% Non-condensing, Storage within 5%~90% Non-condensing
