Analog Ptz Dome Camera Network Mini Dome Ptz Ip Camera 2.0M SONY 290 CMOS

Ask Lasest Price
Brand Name :	WINBO
Model Number :	SAV-E11-SB-223
Certification :	CE,ROHS
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000PCS Per Month
Delivery Time :	5-8 working days for sample order

Add to Cart

Product Details
Company Profile

Analog Ptz Dome Camera Network Mini Dome Ptz Ip Camera 2.0M SONY 290 CMOS

2.5inch 1080P Network MINI HD PTZ Outdoor Camera with 3X Optical Zoom and Infrared

Product Overview

● 2 million pixels 1/3" 2.0M SONY 323 CMOS, 3 times optical zoom;
● Support ONVIF protocol, seamless docking with haicang, dahua, xiong mai and other platforms;
● Support lightning protection, surge protection and surge protection.
● Indoor and outdoor general use, rain protection;
● Support Chinese and English IE interface and operation prompt function, user interface friendly;
Feature description:
● With 2 infrared lamps, the effective irradiation distance can reach 15-20 meters
● 290 horizontal direction "continuous rotation, vertical direction -15°-75°.
● the speed of horizontal preset point can reach up to 35" /s, and thatof vertical preset point can reach up to 25" /s
● K flat key control speed is 00 "25" /s, and vertical key control speed is 00 ~20" /s
● Support 1 to 6 preset bits;
● "Scale doubling is supported and the rotation speed can be adjusted automatically according to the lens magnification.
● Support power-off memory

Specification

Parameter model			SAV-E11-SB-213
PTZ Parameter	Infrared distance		15-20m
	Horizontal range and speed		290° continuous rotation, velocity 0~35° /s
	Vertical range and speed		0°～90°,speed 0～25°/S
	The preset		6
	Keep watch		supports preset bits
Movementparameter	Video parameters	Resolution	2.9 million pixels 1920(H)X 1080(V)
			200MP 1920X1080(33X)
		Sensor	1/2.8” 2.0M SONY 290 CMOS image sensor,
		Low Lux	colo:0.005Lux@F1.2 black-white :0.001Lux@F1.2
		Wide dynamic range	≥100dB
	Lens parameters	Zoom ratio	3 optical zoom 3.5 mm～10.5mm
		Horizontal view Angle	106.6°——51.8°
	Function	Exposure mode	Automatic, indoor, outdoor, sodium lamp mode, manual
		Backlight compensation	Program mode (customizable shutter range), shutter mode (15-120,000s), slow speed r support
		Automatic gain	support
		Electronic shutter	support
		Digital width dynamics	1/30s~1/20,000s Support slow shutter
		Denoise	support
		Focusing mode	Support DNR,3DNR
		Day and night conversion	automatic/manual
		Edge illumination compensation	support
		Exposure mode	support
Port	Video interface		RJ45 network interface
	Power		DC 12V/2A
Others	Power consumption		10W(max)
	Working temperature and humidity		-20℃～+60℃,≤90%RH(No cream)
	Protection grade		TVS3000VLightning protection, surge protection and surge protection;

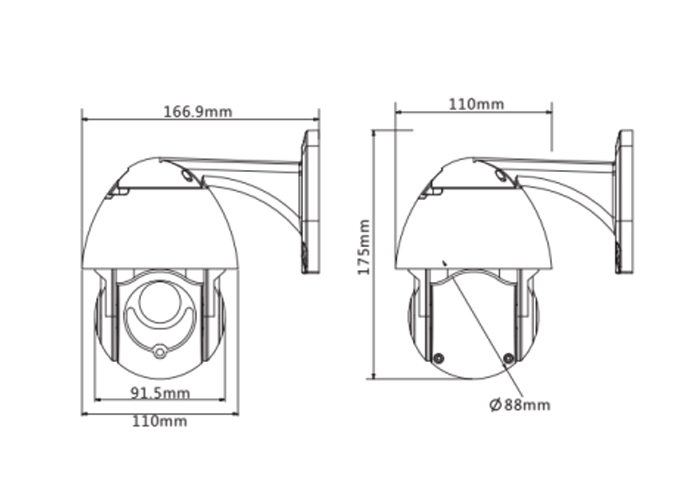

Drawing
